Cabinet Hammer Crusher

HOME > PRODUCTS > Crusher >
Cabinet Hammer Crusher

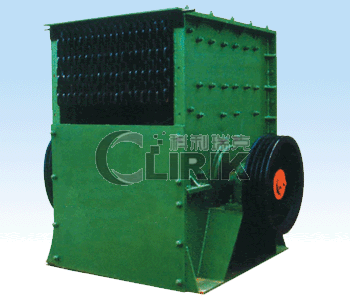

Cabinet Hammer Crusher
Cabinet Hammer Crusher
Product Description:
Cabinet hammer crusher with feature of large feeding space, it is very suitable for processing big raw material with size 450-1400mm to small granularity below 100mm, which are widely used for mine, cement, building material, chemical industry and so on. It is suitable for crush raw materials with compression strength not more than 200Mpa, such as limestone, rock, plaster, coal gangue etc.

——four models: PC600, PC800, PC100 and PC1200
——finished production fineness: under 50 mm.
——the capacity (ton/hour) ranges from 40T/H to 160T/H

Advantages and Features:
1. Large feeding size, high crushing ratio, uniform particle size,
2. The finished size can be adjusted, high productivity.
3. Durable hammers, turning type cabinet, easy maintenance.
4. Coarse and medium reduction in one time, which simplified sand-making process.

Working principle:
In cabinet hammer crusher gravity, hammers do high-speed circular motion along with rotors driven by motor.
After being fed into crusher, large stones are stacking on the shelf which is particular to box crusher. Raw materials are smashed into smaller pieces by hammers. Right following the fist crushing, unqualified pieces hit against the impact plate with new fed material at a tangent to circular motion of Hammers. So once for all, material undergo two steps of crushing, from coarse to medium size then to qualified small size. Finished product are sieved through screen and discharged at a uniform particle size.


Main Specification:
Model PC600 PC800 PC1000 PC1200
Rotor speed(r.p.mm) 600-800 650-750 650-750 600-750
Max feeding size(mm) 550 780 780 800
Finished particle size(mm) 50 50 50 50
capacity (t/h) 30-50 40-80 50-100 100-160
Powder(KW) 40-55 75-90 90-110 110-132
Weight( kg) 4200 4800 6500 8300

Note: Any changes of technical data shall not be prior advised.
