PE series jaw crusher

HOME > PRODUCTS > Crusher >

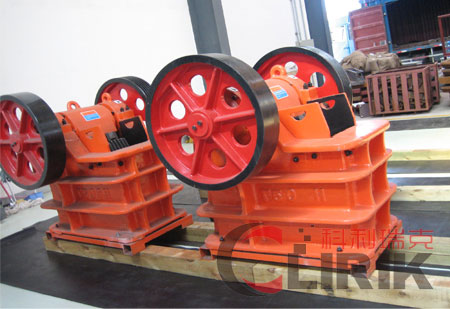

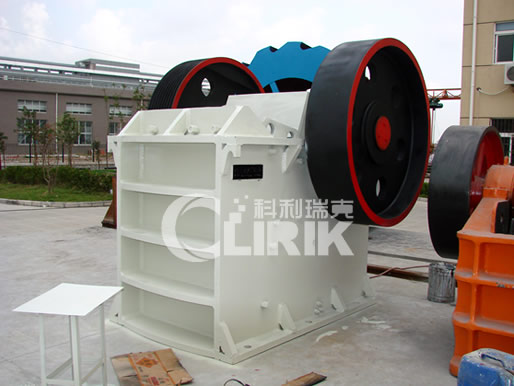

PE series jaw crusher
PE series jaw crusher
PE series jaw crusher
Production description:
Jaw crusher is mainly used in the industries of metallurgy, mining, chemical, cement, construction, refractory materials and ceramics, suitable to crush hard and soft ores with compressive strength less than 320 MPa. This machine can break material s into medium size and fine size.

Advantage and feature:
1. high crushing ratio, uniform particle size,
2. simple structure, reliable performance,
3. easy maintenance and economic operation.

Working principle:

Jaw crusher mainly consists of frame, eccentric shaft, jaw plate, connecting bar, adjustment part and spring.

The movable jaw goes upward and downward through eccentric shaft when belt and belt wheel are driven by the motor. The angle between movable jaw and bracket turns big when the movable jaw goes upward, which pushes the movable jaw plate to come closely to fixed jaw plate. At the same time, materials are crushed with the movement of the movable jaw.

When the movable jaw goes downward, the angle between movable jaw and bracket turns small. Under the force of spring and connecting bars, the movable jaw plate leaves fixed jaw plate, and the crushed materials with qualified size are discharged from the crushing cavity. With the continuous rotation of the motor, the movable jaw crushes and discharges materials, which, in turn, realizes the goal of mass production.


Main Specification:

Type
     Feed Opening Szie
(mm)
        Feeding Size (mm) Output Open Range
(mm)
Capacity (t/h) Powder
(kw)
  Dimension
L*W*H
(mm)
PE150×250 150X250 125 10--40 1--5 5.5--7.5 922×745×933
PE200×350 200X350 125 15--40 5--16 7.5--11 1056*1142*1220
PE250×400 250x400 210 20-60 5--20 15--18.5 1430*1310*1340
PE400×600 400X600 350 40--100 15--60 30-37 1700*1732*1653
PE500×750 500X750 425 50-100 40-100 45-55 2035*1921*2000
PE600×900 600X900 480 65-160 60-140 55-75 2290*2206*2370
