Rock phosphate pulverizer

Rock phosphate, phosphate rock or phosphorite is a non-detrital sedimentary rock which contains high amounts of phosphate bearing minerals. Approximately 90% of phosphate rock production is used for fertilizer and animal feed supplements and the balance for industrial chemicals.Froth flotation is used to concentrate the mined phosphorus to rock phosphate. The mined ore slurry is treated with fatty acids to cause calcium phosphate to become hydrophobic.

Rock phosphate pulverizer:
There are five types of Shanghai CLIRIK rock phosphate pulverizer, they are HGM80, HGM90, HGM100, HGM100A and HGM125. The finished production fineness can be reached 300meshes~3000meshes, 5-47 micron. The capacity (ton/hour) ranges from 0.4T/H to 12T/H.

Working principle of rock phosphate pulverizer:

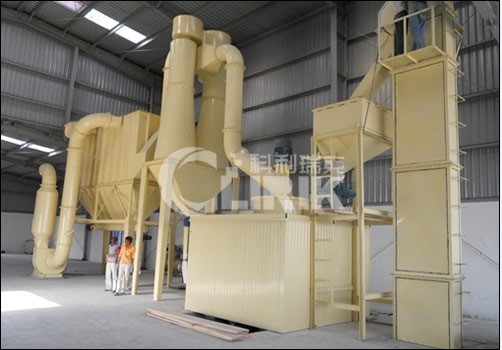

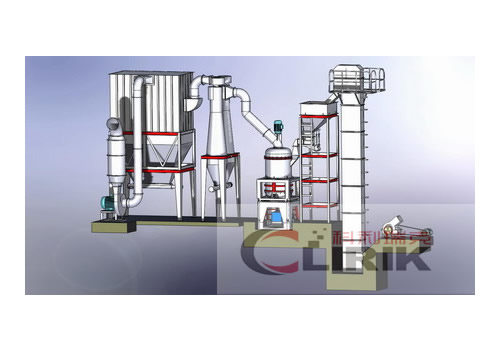

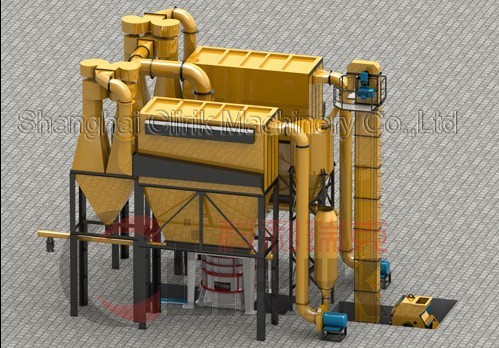

HGM series rock phosphate pulverizer mainly consist of main unit, classifier, powder collector, dust cleaner, blower, muffler, sound-proof room, crusher, bucket elevator, storage hopper, and vibrating feeder.

After crushed by hammer crusher, the large materials become small ones and are sent to storage hopper by elevator, and then evenly sent to the upper distribution plate of the turnplate by vibrating feeder and sloping feeding pipe.

When the rock phosphate pulverizer is at work, all the grinding rollers are rolling in the ring, and the materials are driven to the edge of the turnplate by the centrifugal force and fall down into the grinding chambers where the materials are repeatedly pressed, crushed and grinded by the rollers.

The high-pressure air blower constantly inhales air within the rock phosphate pulverizer and, in turn, the airflow with crushed materials are brought to the classifier whose high-speed impeller will screen the airflow: the unqualified particle size will fall and return to the mill for being reground while the qualified particle size mixed with air will go into the cyclone powder collector. Most of the qualified powders will fall and exit from the discharging valve at the bottom; a small proportion of the fine powders, with airflow, moves to the dust cleaner, and clings to the surface of the filter bags. At the same time, the fine powders clinging to the surface fall down by the sudden vibration of the filter bags, which is caused by the instantly ejected high-pressure gas controlled by the pulse valve. The materials from the above two lots are sent by the conveyor at the bottom to get finished powders packed. In addition, filtered clean air will be emitted from the air outlet of muffler in the end.
