Graphite pulverizer

HOME > PRODUCTS > Stone Pulverizer >
Graphite pulverizer

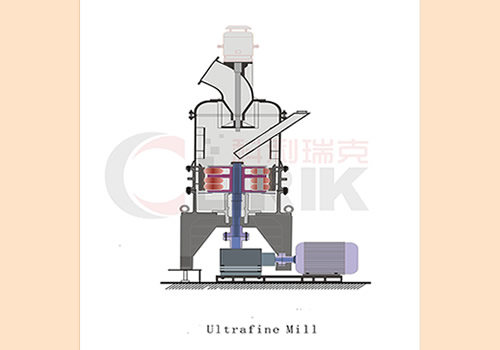

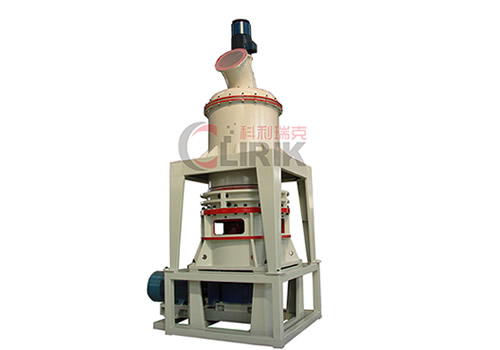

Graphite pulverizer
Graphite pulverizer
Graphite:
System: Hexagonal
Colour: Iron black to steel-grey
Lustre: Sub-Metallic
Hardness: 1 - 2
Name: From Greek "graphein", 'to write'; named by German chemist and mineralogist A. G. Werner in 1789.
Polymorph of: Chaoite, Diamond, Lonsdaleite
Graphite usually occurs in flakes in metamorphosed rocks rich in carbon, but it can also be found in veins and in pegmatites. Where large deposits are found it is mined and used as an industrial lubricant and for 'lead' in pencils.

Graphite processing machine, We recommend graphite pulverizer, there are five types of Shanghai CLIRIK graphite pulverizer, they are HGM80, HGM90, HGM100, HGM100A and HGM125. The finished production fineness can be reached 300meshes~3000meshes, 5-47 micron. The capacity (ton/hour) ranges from 0.4T/H to 12T/H.

Main Components of HGM series graphite pulverizer:

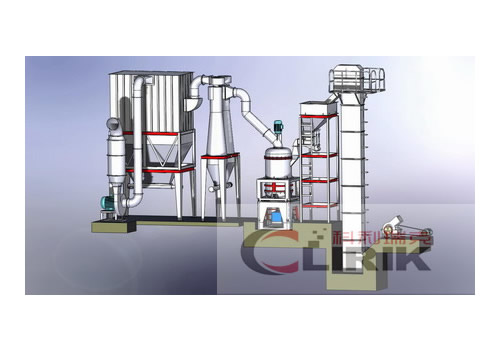

HGM series graphite pulverizer mainly consist of main unit, classifier, dust cleaner, powder collector, blower, muffler, hammer crusher (can be replaced by jaw crusher), bucket elevator, sound-proof room, storage hopper, vibrating feeder and so on.

Advantages and features of graphite pulverizer :
l、 High efficiency
Under the same finished final size and the same motor power, the capacity of graphite pulverizer is twice as much as jet mill, mixing grinder and ball mill.
2、Long lifecycle of spare parts
The ring and roller are forged by special material with high utilization. Under the same grinding material and finish special size, the lifecycle of spare parts is about one year, which is 2-3times longer than impact mill or turbo mill. Furthermore, the lifetime can reach 2-5 years for grinding calcite carbonate.
3、High safety and reliability
As no rolling bearings or screws in grinding cavity, there are no problems caused by bolts shedding or rapid wear of bearings and seal components.
4、 High fineness and flexible adjustment
The final fineness of the grinding materials can be adjusted between 325 meshes and 3000 meshes, and the product fineness can reach D97≦5um.
5、Environment-friendly
The application of pulse deduster and muffler greatly alleviates dust pollution and noise.

Technical data of graphite pulverizer:

Model HGM80 HGM90 HGM100 HGM100A HGM125
Ring Diameter(mm) 800 930 1035 1035 1300
Ring Number (PCS) 3 3-4 3 4 4
Roller Number(PCS) 21 24-32 27 34-36 40-44
Main Shaft Speed (r. p. min) 230-240 200-220 180-200 180-200 135-155
Input Size (mm) ≤20
Finished Size (um) 5-47(325-2500)
Capacity (t/h) 0.5-4.5 0.6-6.5 0.7-7 1-8.5 1.5-12
Outlet Size L*W*H (m) 13.9*4*6.2 14.7*4.8*7.2 18*4.6*8.6 18*4.6*8.6 14*9*10.25
Motor powder (KW) 145-165 185-204 263 263-290 380-430

Note: This specification is just referencing, any changes are subject to the products.
