Impact Crusher Pulverizer Machine

HOME > PRODUCTS > Crusher Pulverizer >

Impact crusher pulverizer machine is widely applied in mining, transportation, energy, construction and chemical industry. Impact crusher is ideal choice for crushing and screening. It features reasonable structure, high productivity, easy operation and maintenance and safe performance. The most outstanding advantage of the impact crusher is that its finished powder is in good, cubic shape and without tensility and cranny.

Features of Impact Crusher Pulverizer Machine:
1. High reduction ratio and crushing efficiency
2. No-board connection; The blow bar of our impact crusher with high chrome(high chromed blow bar).
3. Impact plate with a special shape.
4. Crushed product of impact crusher with cubical shape.
5. Easy maintenance and reliable operation.
6. Advanced Manufacture process and high-end fabrication material
7. Heavy rotor design and tight test method improve the rotor performance.
8. Overall type cast steel structure bearing base improves anti load resistance capacity.
9. Hydraulic jacking device and hydraulic regulated discharging port is helpful to save labor and time.

Working Principle of Impact Crusher Pulverizer Machine:
This impact crusher pulverizer machine crushes materials with impact force. When the materials enter the blow bar area, they are crushed due to the high-speed impact of the blow bar and are thrown to the impact plates on the rotor for secondary crush. Then the materials will be shot back to the blow bar again for the third crush. This process repeats until the materials are crushed to the required size and discharged from the lower part of the machine. The size and shape of the finished powder can be changed by adjusting the gap between the impact rack and rotor support. The machine employs self-weigh security device in its back frame. When other objects enter the impact cavity, they will be forced out of the machine by the impact rack in the front and back of the machine.

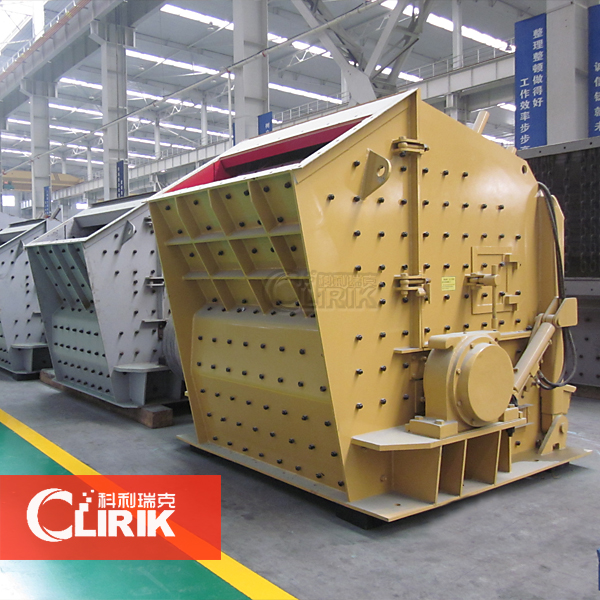

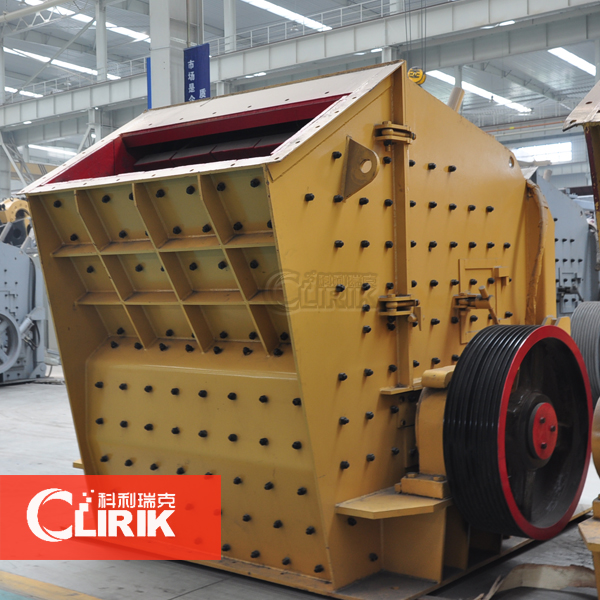

impact crusher pulverizer machine

table 1 of Impact crusher pulverizer machine

Model	Size of Rotor(mm)	Feeding Opening(mm)	Max.Feeding Size(mm)	Capacity(t/h)	Power of Motor(KW)
PF-1007	1000×700	400×730	260	25-60	55
PF-1010	1000×1050	400×1080	260	50-90	55-75
PF-1210	1020×1050	400×1080	300	70-130	110-132
PF-1214	1050×1400	400×1430	300	90-180	132-160
PF-1315	1320×1500	860×1520	350	120-250	180-220
PF-1320	1320×2000	860×2030	500	160-350	280-300
PF-1520	1500×2000	1315×2040	700	300-500	400-450

table 2 of Impact crusher pulverizer machine

Model	Rotor Φ×L (mm)	Feed Opening (mm)	Max Feeding (mm)	Capacity (t/h)	Power (kw)	Motor Model	Machine Size (mm)
PFW1214II	1150×1400	1100×1430	500	130-200	4-132	Y315M-4/132	2400×2310×2550
PFW1315II	1300×1500	1200×1530	600	180-320	4-160	Y315L1-4/160	2700×2570×2800
PFW1318II	1300×1800	1200×1830	700	240-400	4-200	Y315L2-4/200	2700×2870×2800
PFW1415II	1400×1500	1450×1530	800	240-450	4-200	Y315L2-4/200	3000×2700×3070
