HOME > PRODUCTS > Stone Pulverizer >
Calcium Carbonate Pulverizer
Calcium Carbonate Pulverizer
Calcium Carbonate Pulverizer
Product Description

Introduction of Calcium Carbonate pulverizer:

—— Five models: HGM80, HGM90, HGM100, HGM100A, and HGM125

—— Finished production fineness: 325meshes~2500meshes, 5-47micron

——The capacity (ton/hour) ranges from 0.5T/H to 10T/H



Application of Calcium Carbonate pulverizer:

Calcium Carbonate pulverizer is mainly applied to grind non-inflammable, non-explosive and brittle materials with Mohs’ hardness under six. Such as calcite, chalk, limestone, dolomite, kaolin, gypsum, and talc etc, totally more than 100 kinds of materials.

Production line of Calcium Carbonate pulverizer:

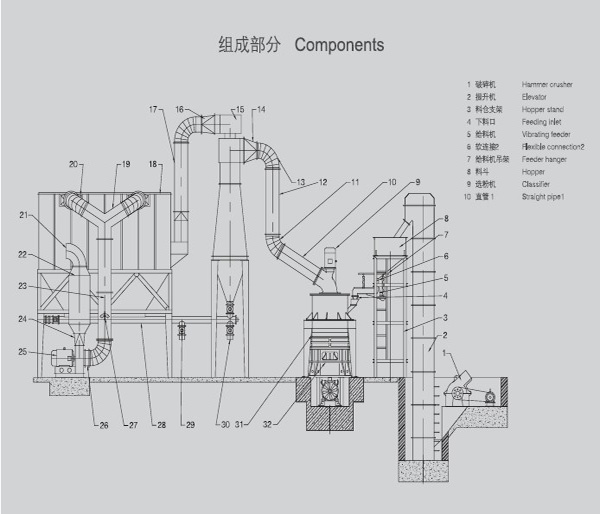

The whole set HGM Calcium Carbonate pulverizer consists of  hammer crusher, bucket elevator, storage hopper, vibrating feeder, main unit, inverter classifier, cyclone collector, pulse deduster system, high pressure positive blower, air compressors and electrical control systems.

5

Features of Calcium Carbonate pulverizer:

1.High Efficiency

Under the same finished final size and the same motor power, the capacity of the machine is twice as much as jet mill, mixing grinder and ball mill, and energy consumption decreased 30%.

2.Long lifecycle of spare parts

The ring and roller are forged by special material with high utilization,the lifetime can reach 2-5 years for grinding calcite carbonate.

3.High safety and reliability

As no rolling bearings or screws in grinding cavity, there are no problems caused by bolts shedding or rapid wear of bearings and seal components.

4.High fineness, flexible adjustment

The final fineness of the grinding materials can be adjusted between 325 meshes and 2500 mesh (47-5 micron), and the product fineness can reach D97≤5μm.

5.Environment-friendly



Main specification of Calcium Carbonate pulverizer:

Model
HGM80
HGM90
HGM100
HGM100A
HGM125
Ring Diameter(mm)
800
900
1000
1000
1250
Ring Number/pcs
3
3-4
3-4
4
4
Roller Number/pcs
21
24-32
27-36
27-36
40-44
Main Shaft Speed/r. p. min
230-240
200-220
180-200
180-200
135-155
Input Size/mm
≤20
Finished Size/um
5-47(325-3000)
Capacity t/h
0.5-4.5
0.6-6.5
0.7-7
0.8-8.5
1.5-12
Outlet Size L*W*H/m
13.9*4*6.2
14.7*4.8*7.2
18*4.6*8.6
18*4.6*8.6
14*9*10
