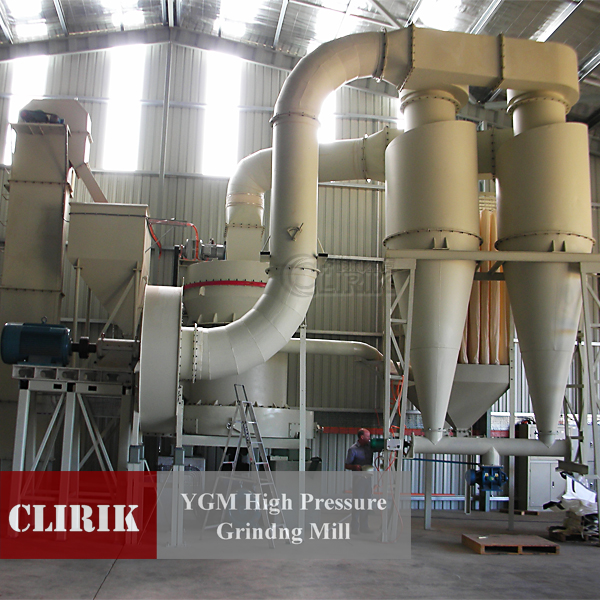

High presure pulverizer
High presure pulverizer
High presure pulverizer
Product description of high pressure pulverizer
There are five types of Shanghai CLIRIK high pressure pulverizer, they are YGM7815, YGM8314, YGM9517, YGM4121, and MTM1600.The finished production fineness can be reached 50meshes and 325 meshes, 315-45 micron. The capacity (ton/hour) ranges from 1T/H to 20T/H.

Application of high pressure pulverizer:
Clirik High Pressure pulverizer is suitable for processing various non-flammable and non-explosive mineral materials with Moh’s hardness less than 9.3 and humidity less than 6%, it is widely used in the fields of metallurgy, construction, chemical industry, mining, highway construction etc,. The granularity of the finished powder size can be adjusted between 50 and 325 mesh (315-45 micron). Examples of processing materials include quartz, feldspar, barite, calcite carbonate, limestone, talc, ceramic, iron ore, carborundum, bauxite, rock phosphate, coal and other materials, total about 400 kinds of materials.

Working features of High Pressure pulverizer:
 High Presure pulverizer has the similar working principle as Raymond mill, but its grinding device is fixed with 1000-1500kg pressure springs. When the machine works the grinding roller , which under the action of high pressure spring and centrifugal force, rolls close up to grinding ring, its rolling pressure is 1.2 times higher than that of Raymond mill given an identical condition and its capacity increase 20% to 30%; When the grinding roller and grinding ring, stable capacity and fineness are guaranteed.

Working Principle of High Pressure pulverizer:
 Big materials are crushed by jaw crusher to the required particle sizes, and carried by bucket elevator to the storage hopper, and are fed evenly and continuously by vibrating feeder into the main unit for grinding. The grinded powder are carried by the airflow from the blower to the classifier to be classified, the particles which meet the fineness enter cyclone collector through pipe, and are separated and collected there. They are discharged at the discharging valve to become finished products; the airflow is sucked to the blower by return pipe on the top of cyclone collector. The whole airflow system is a sealed circulation, and is circulated under positive and negative air pressure.


Detail Specification of High Presure pulverizer:
Model Roller Ring            Feeding Size(mm)             Finished Size(mm)           Motor Powder(kw) capacity(t/h)            Overall Dimension(mm)
 quantity(piece) Diameter(mm) Height(mm) Inner Diameter(mm) Height(mm)
YGM7815 3 260 150 780 150 15 0.613-0.033 18.5 1--3 4300*3500*5100
YGM8314 3 270 140 830 140 20 0.613-0.033 22 1.2--4.6 5300*4100*5200
YGM9517 4 310 170 950 170 25 0.613-0.033 37 2.1-5.6 7100*5900*7900
YGM4121 5 410 210 1280 210 30 0.613-0.033 75 2.8-10.5 9200*7250*9700
MTM160 6 440 270 160 270 35 0.613-0.033 132 5--20 12550*5700*8350
Note: Any changes of technical data shall not be prior advised.
